BridalBuddy Developer Guide

---

Acknowledgements

This project is evolved from AddressBook-Level3.

---

Setting up, Getting Started

Refer to the guide Setting up and getting started.

---

Design

Architecture

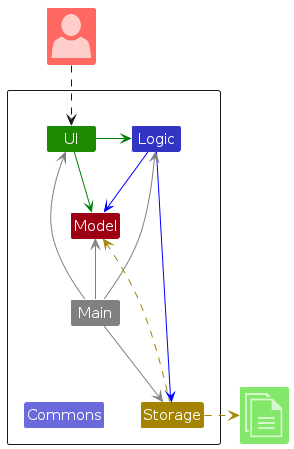

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main (consisting of classes Main and MainApp) is in charge of the app launch and shut down.

• At app launch, it initializes the other components in the correct sequence, and connects them up with each other.
• At shut down, it shuts down the other components and invokes cleanup methods where necessary.

The bulk of the app's work is done by the following four components:

• UI: The UI of the App.
• Logic: The command executor.
• Model: Holds the data of the App in memory.
• Storage: Reads data from, and writes data to, the hard disk.

Commons represents a collection of classes used by multiple other components.

How the architecture components interact with each other

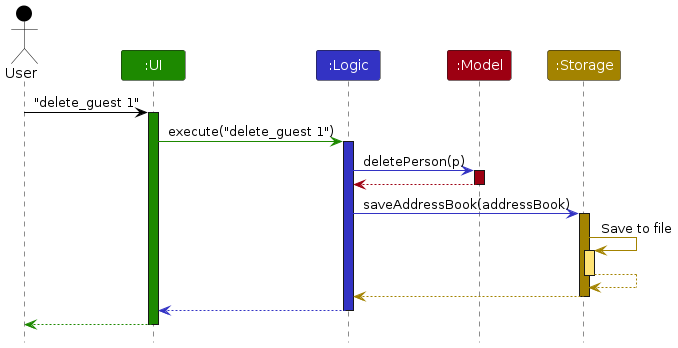

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete_guest 1.

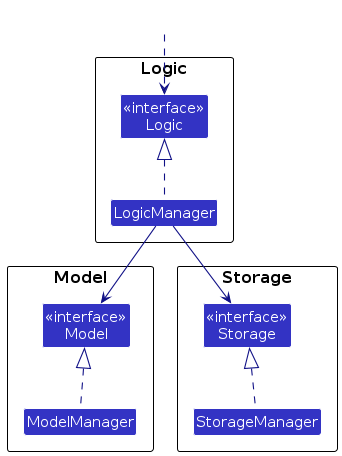

Each of the four main components (also shown in the diagram above),

• defines its API in an interface with the same name as the Component.
• implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point).

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component's being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

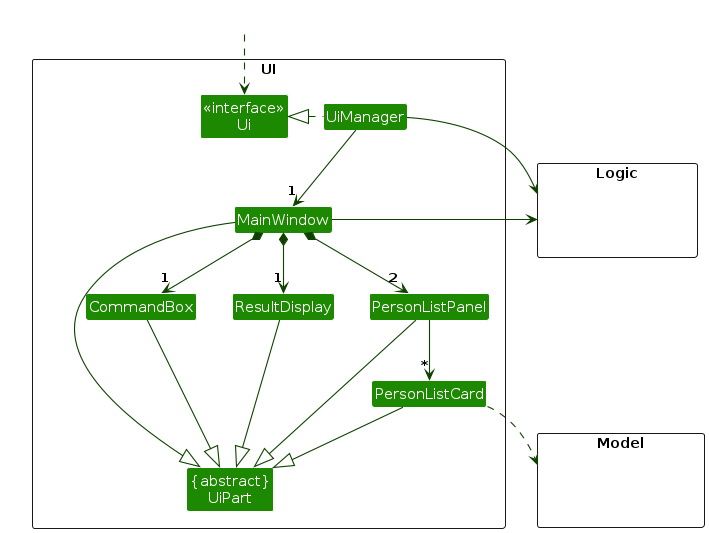

The UI consists of a MainWindow that is made up of three smaller parts:CommandBox, ResultDisplay and PersonListPanel. All these parts, along with the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

• executes user commands using the Logic component.
• listens for changes to Model data so that the UI can be updated with the modified data.
• keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
• depends on some classes in the Model component, as it displays Guest, Vendor objects residing in the Model.

Logic component

API : Logic.java

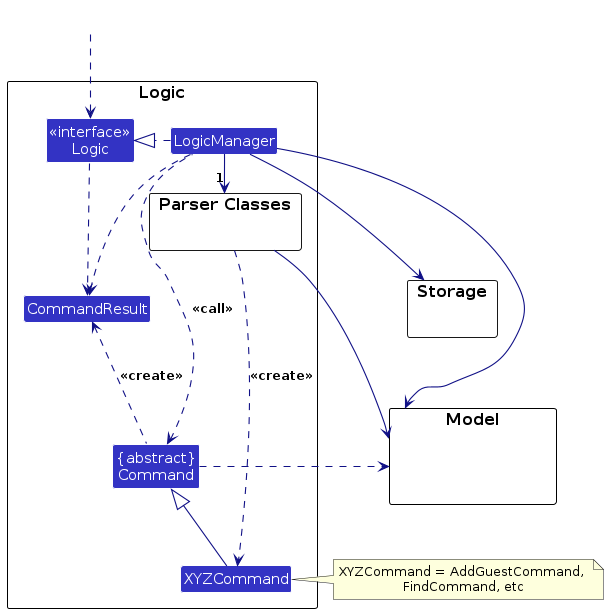

Here's a (partial) class diagram of the Logic component:

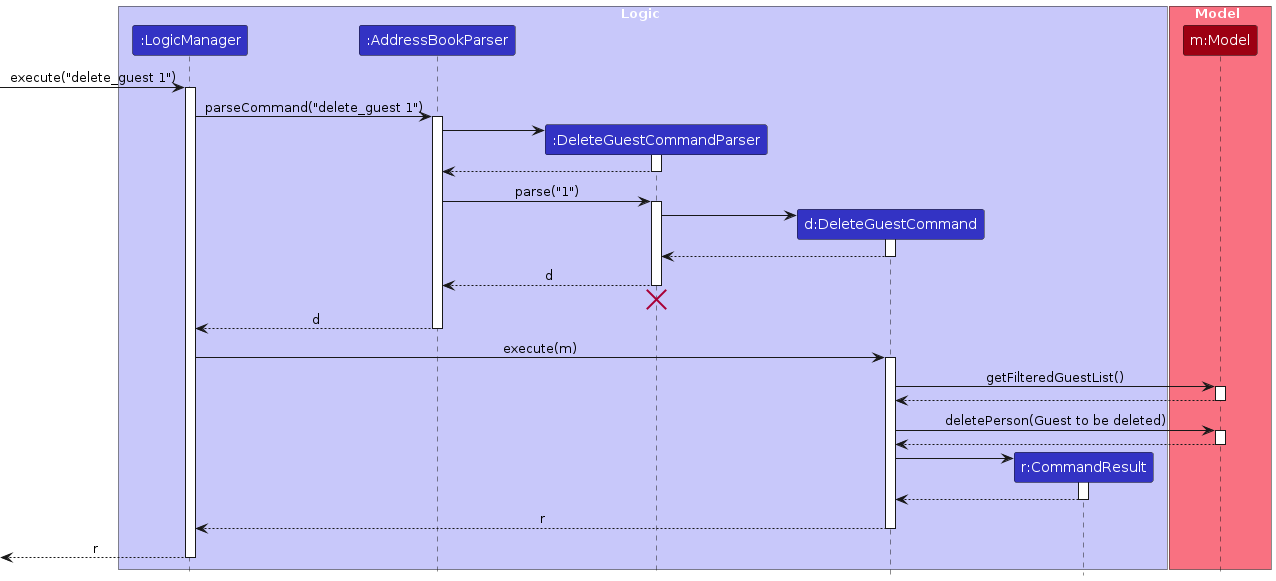

The sequence diagram below illustrates the interactions within the Logic component, taking execute("delete_guest 1") API call as an example.

How the Logic component works:

1. When Logic is called upon to execute a command, it is passed to an AddressBookParser object which in turn creates a parser that matches the command (e.g., DeleteGuestCommandParser) and uses it to parse the command.

   • Note that EditVendorCommandParser and EditGuestCommandParser parser classes require the Model, to check if the guest or vendor index provided by the user is valid or not.



2. This results in a Command object (more precisely, an object of one of its subclasses e.g., DeleteGuestCommand) which is executed by the LogicManager.

3. When the Command object is executed, it communicates with the Model (e.g., to delete a guest).
   In the sequence diagram example above, the Command object first calls the getFilteredGuestList method, followed by the deletePerson method on the Model during its execution, illustrating one possible sequence of communication.

4. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

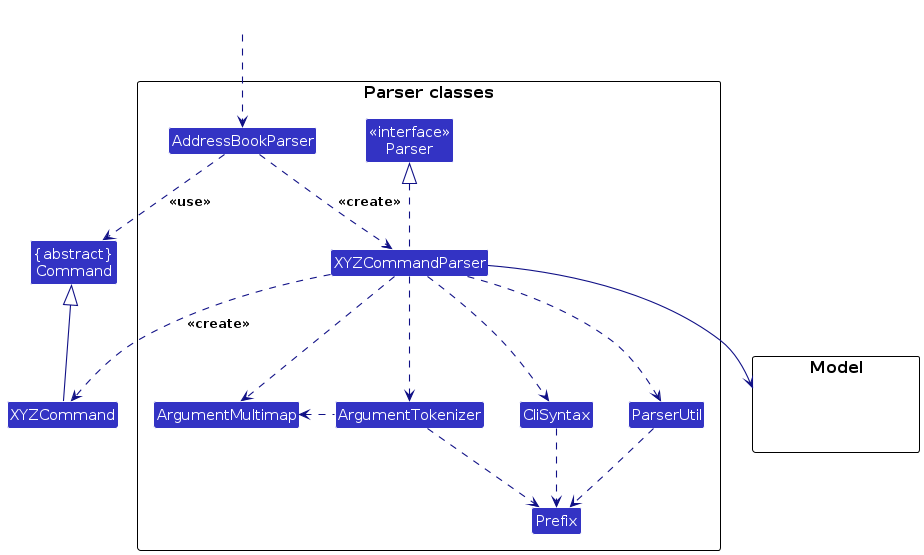

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

How the parsing works:

• When called upon to parse a user command, the AddressBookParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddGuestCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddGuestCommand) which the AddressBookParser returns back as a Command object.
  • As explained above, some XYZCommandParser classes require the Model for parsing.
  • Note that for clear, list, exit, help and stats user commands, the AddressBookParser directly returns the Command object, and no corresponding XYZCommandParser class is created (as there is no extra info to parse).


• All XYZCommandParser classes (e.g., AddGuestCommandParser, DeleteGuestCommandParser, ...) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

Model component

API : Model.java

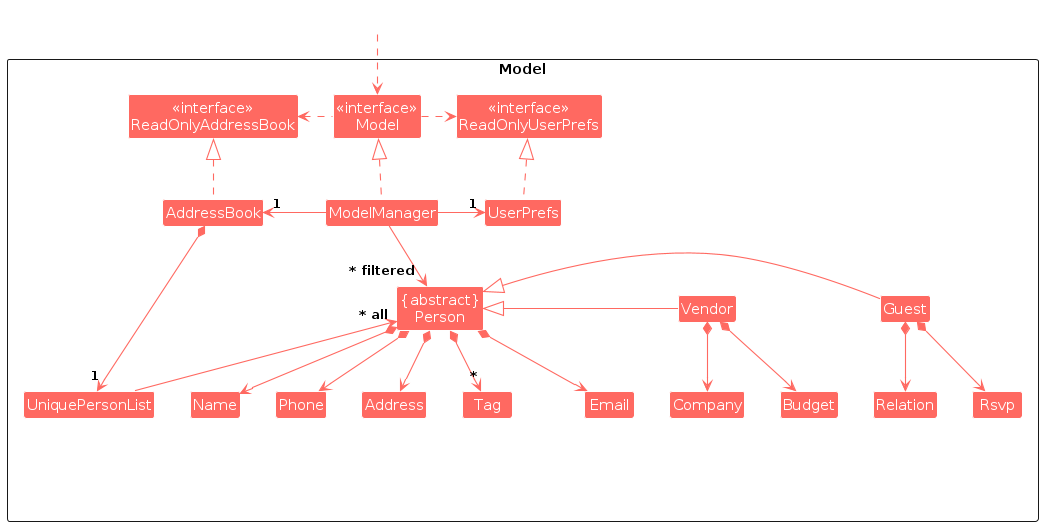

Note: Vendor and Guest both extend from the abstract Person class, which defines common attributes and behaviors shared by both types of entities.

The Model component,

• stores the address book data i.e., all Guest and Vendor objects (which are contained in a UniquePersonList object).
• stores the currently 'selected' Guest / Vendor objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Person> that can be 'observed' e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
• stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
• does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components).

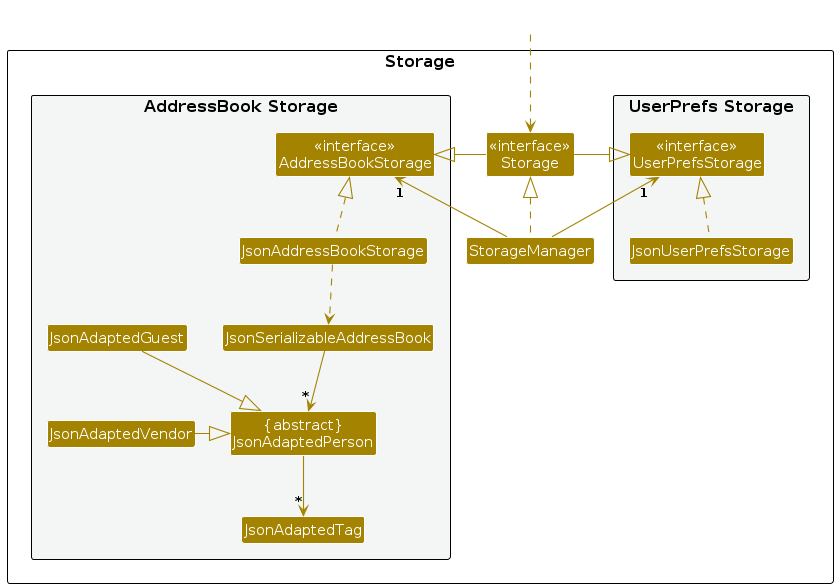

Storage component

API : Storage.java

The Storage component,

• Can save both address book data and user preference data in JSON format, and read them back into corresponding objects.

  • Storage saves Guest into JSON format and reads back into Guest object, using the JsonAdapatedGuest class.
  • Storage saves Vendor into JSON format and reads back into Vendor object, using the JsonAdaptedVendor class.



• Inherits from both AddressBookStorage and UserPrefStorage, which means it can be treated as either one (if only the functionality of only one is needed).

• Depends on some classes in the Model component (because the Storage component's job is to save/retrieve objects that belong to the Model).

Common classes

Classes used by multiple components are in the seedu.address.commons package.

---

Implementation

This section describes some noteworthy details on how certain features are implemented.

Add Guest feature

The add_guest command creates and adds a new Guest object into the address book. The attributes of the Guest are specified through prefixes (n/, p/, e/, a/, rsvp/, r/ and t/) and their corresponding values.

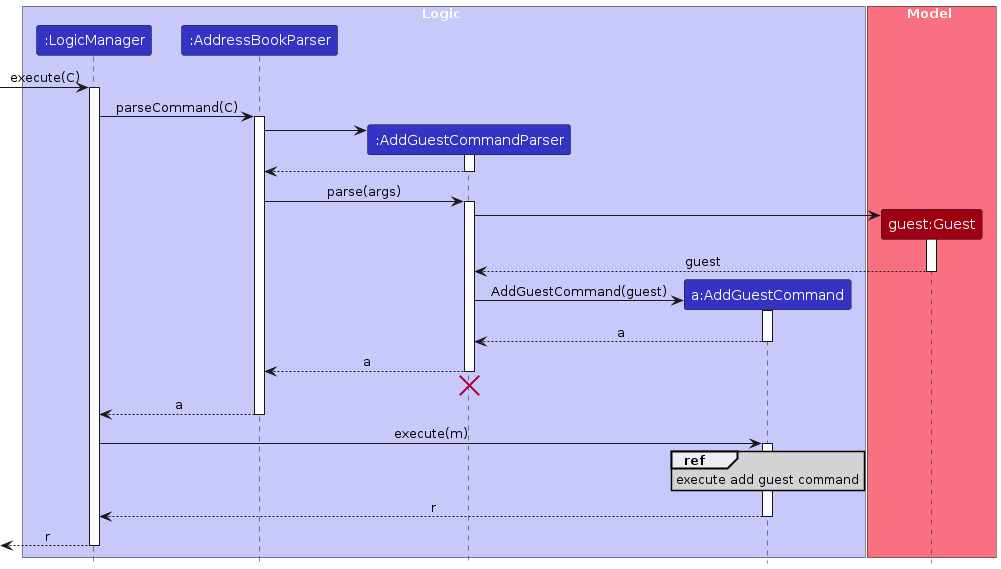

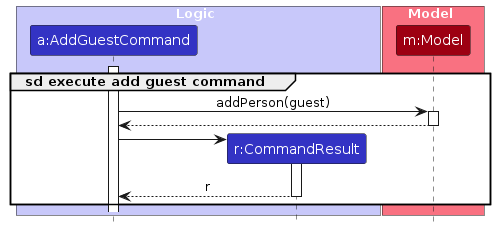

The sequence diagrams below provide an overview for the execution flow of an add_guest command.
Note: In the diagrams below,

• Let C represent the command: "add_guest n/Joe p/98765432 e/joe@gmail.com a/Nexus"
• Let args represent the arguments provided in the command: "n/Joe p/98765432 e/joe@gmail.com a/Nexus"
• Let m represent an instance of the Model

Explanation:

1. The execute method of LogicManager is called with the user input as the argument to begin the command execution.
2. AddressBookParser parses the user input initially. If the user input is identified to be an add_guest command, it creates and returns an AddGuestCommandParser for further parsing.
3. AddGuestCommandParser parses the arguments provided in the user input to extract the prefixes and their values, which are used to create a Guest object with the corresponding attributes.
   • Suppose the n/, p/, e/ and a/ prefixes and their values are provided (these are compulsory).
   • Then, a Guest object with name, phone number, email and address attributes will be created.

4. An AddGuestCommand is then created with the new Guest object and returned.
5. LogicManager executes the AddGuestCommand, which calls the addPerson method of Model to add the guest into the address book.
6. A CommandResult containing the success message is then returned to the LogicManager (and then back to the UI component).

Edit Guest feature

The edit_guest command updates the details of an existing guest in the address book. Users can specify the guest to be edited by providing the index number (positive, starting from 1) of that guest. New guest details are specified through prefixes (n/, p/, e/, a/, rsvp/, r/ and t/) and their corresponding values.

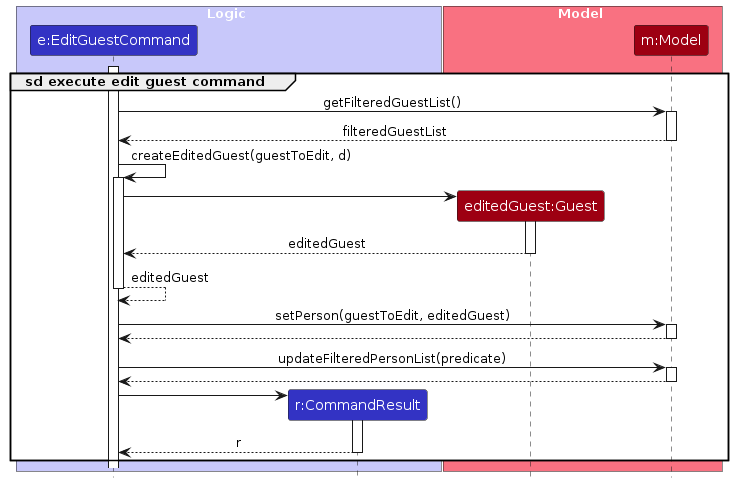

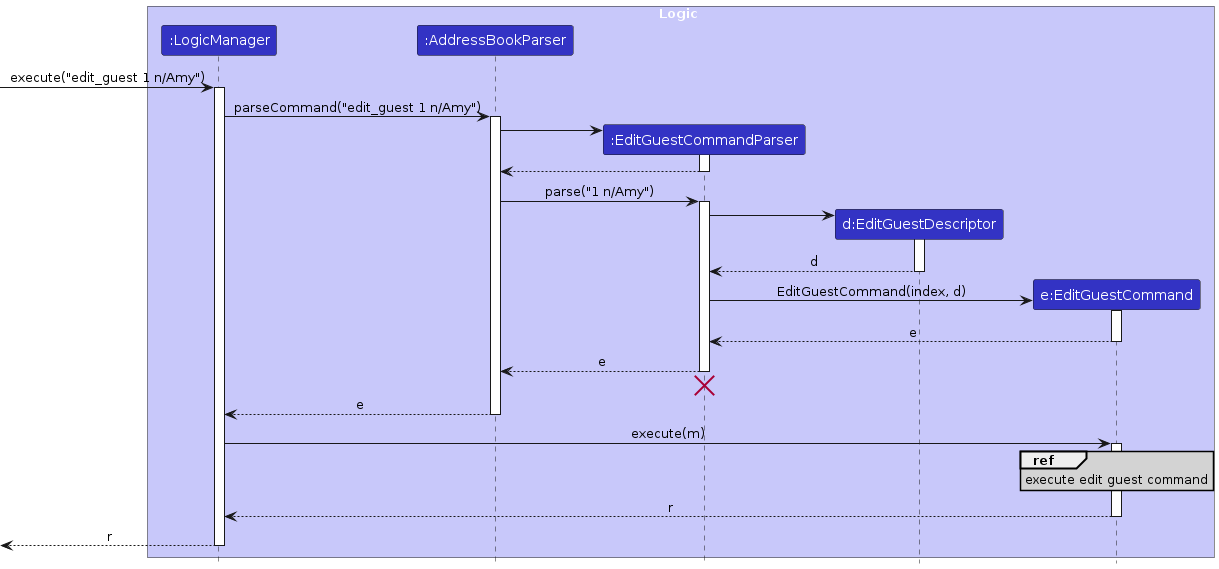

The sequence diagrams below provide an overview for the execution flow of an edit_guest command:

Note: In the diagrams below,

• Let m represent an instance of the Model.

Explanation:

1. The execute method of LogicManager is called with the user input as the argument to begin the command execution.
2. AddressBookParser parses the user input initially. If the user input is identified to be an edit_guest command, it creates and returns an EditGuestCommandParser for further parsing.
3. EditGuestCommandParser parses the arguments provided by the user input to extract the prefixes and their values, which are used to create an EditGuestDescriptor object that captures the updated information

4. An EditGuestCommand is then created with the guest index provided, as well as the new EditGuestDescriptor object.
5. LogicManager executes the EditGuestCommand, which retrieves the guest list from Model. The guest index is used to access the target guest to edit. An edited guest with the updated name (from the example above) is then created using the existing target guest and the EditGuestDescriptor. The setPerson method is then called to replace the existing target guest with the edited guest. Subsequently, the updateFilteredPersonList method from Model is called to update the filtered list.
6. A CommandResult containing the success message is then returned to the LogicManager (and then back to the UI component).

Find feature

The find command searches for all guests and vendors that match any of the given keyword(s) and displays them. The prefix specified in the command indicates the attribute to be searched. Do note that exactly one type of prefix should be used for each find command.

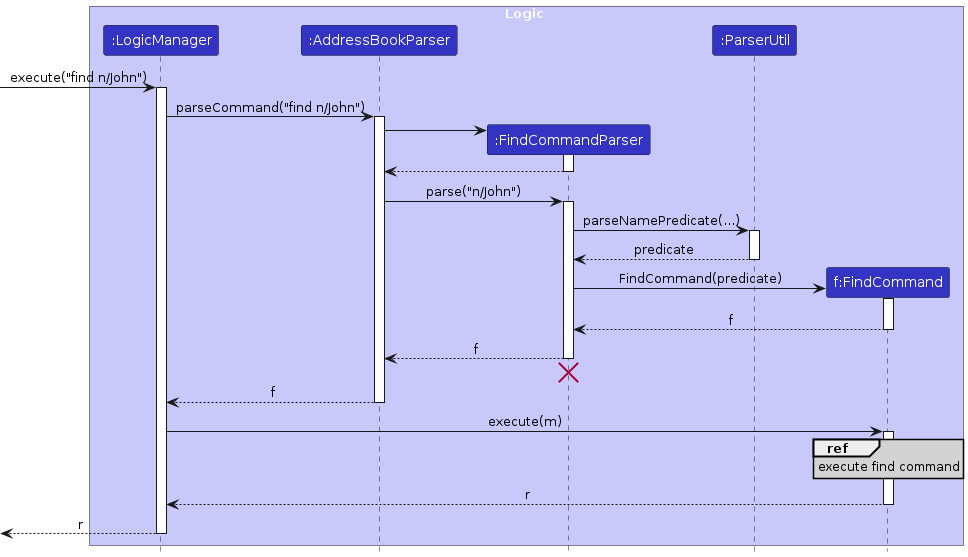

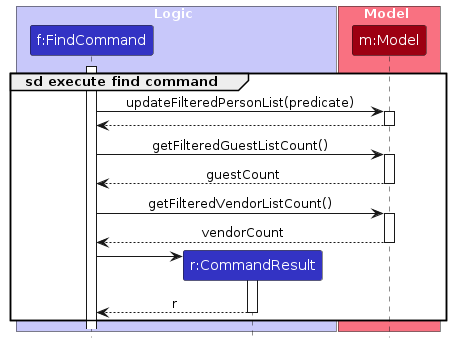

The sequence diagrams below provide an overview for the execution flow of a find command:

Note: In the diagrams below,

• Let m represent an instance of the Model.

Explanation:

1. The execute method of LogicManager is called with the user input as the argument to begin the command execution
2. AddressBookParser parses the user input initially. If the user input is identified to be a find command, it creates and returns a FindCommandParser for further parsing.
3. FindCommandParser parses the arguments provided in the user input to extract the prefix and its corresponding value. Then, it calls the corresponding parse predicate method to create the corresponding predicate to be used. In the above example, since the name prefix is specified, the parseNamePredicate method is called to create a NameContainsKeywordsPredicate object.
4. A FindCommand is then created with the predicate and returned.
5. LogicManager executes the FindCommand, which calls the updateFilteredPersonList method of the Model with the predicate as the argument. This method filters the list of guests and vendors based on the predicate. In this example, guests and vendors whose name matches the given keyword John will be kept in the filtered list. Subsequently, the FindCommand calls getFilteredGuestListCount and getFilteredVendorListCount methods from Model to respectively obtain the number of remaining guests and vendors.
6. A CommandResult containing the success message is then returned to the LogicManager (and then back to the UI component).

---

Documentation, Logging, Testing, Configuration, Dev-ops

• Documentation guide
• Testing guide
• Logging guide
• Configuration guide
• DevOps guide

---

Appendix A: Requirements

Product scope

Target user profile:

A wedding planner who:

• Has a need to manage a significant number of contacts
• Has a need to manage different types of contacts (e.g. vendors, guests)
• Favours desktop applications over other alternatives
• Prefers keyboard commands over mouse interactions
• Adequately proficient with command-line applications

Value proposition:

• Streamlined, all-in-one wedding planning tool
• Intuitive organisation and customisation
• Stress-free and efficient planning process
• One-stop companion for wedding planners
• Simplifies time-intensive and tedious tasks of managing guest lists and vendor contacts
• Enhances efficiency by reducing time spent navigating complex GUIs

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Use cases

(For all use cases below, the System is BridalBuddy and the Actor is the user, unless specified otherwise)

Use case: UC01 - Add a Guest

MSS

1. User requests to add a new Guest with the required details (e.g. name, email, etc.).

2. System adds the entry.

   Use case ends.

Extensions

• 1a. The provided details are incomplete or invalid.

  • 1a1. System shows an error message and requests the user to re-enter the details.

    Use case resumes at step 1.

• 1b. The input command was invalid (i.e. spelling error, etc.).

  • 1b1. System tells the user the command is unrecognised.

    Use case ends.

• 1c. A Guest with the same name and phone number already exists

  • 1c1. System tells the user the Guest already exists

    Use case ends.

Use case: UC02 - Add a Vendor

MSS

1. User requests to add a new Vendor with the required details (e.g. name, email, etc.).

2. System adds the entry.

   Use case ends.

Extensions

• 1a. The provided details are incomplete or invalid.

  • 1a1. System shows an error message and requests the user to re-enter the details.

    Use case resumes at step 1.

• 1b. The input command was invalid (i.e. spelling error, etc.).

  • 1b1. System tells the user the command is unrecognised.

    Use case ends.

• 1c. A Vendor with the same name and phone number already exists

  • 1c1. System tells the user the Vendor already exists

    Use case ends.

Use Case: UC03 - Update details of Guest

MSS

1. User selects Guest to update along with the fields to be updated.

2. System saves the changes and notifies user of success.

   Use case ends.

Extensions

• 1a. The input command was invalid (i.e. spelling error, etc.).

  • 1a1. System tells the user the command is unrecognised.

    Use case ends.

• 1b. The new details are incomplete or invalid.

  • 1b1. System shows an error message and requests the user to re-enter the details.

    Use case resumes at step 1.

• 1c. The new details result in a duplicate Guest (i.e. same name, phone number and type)

  • 1c1. System tells the user the Guest already exists

    Use case ends.

Use Case: UC04 - Update details of Vendor

MSS

1. User selects a Vendor to update along with the fields to be updated.

2. System saves the changes and notifies user of success.

   Use case ends.

Extensions

• 1a. The input command was invalid (i.e. spelling error, etc.).

  • 1a1. System tells the user the command is unrecognised.

    Use case ends.

• 1b. The new details are incomplete or invalid.

  • 1b1. System shows an error message and requests the user to re-enter the details.

    Use case resumes at step 1.

• 1c. The new details result in a duplicate Vendor (i.e. same name, phone number and type)

  • 1c1. System tells the user the Vendor already exists

    Use case ends.

Use Case: UC05 - Delete a Guest

MSS

1. User requests to delete a Guest entry.

2. System deletes the Guest entry.

   Use case ends.

Extensions

• 1a. The provided Guest entry does not exist.

  • 1a1. System shows an error message.

    Use case resumes at step 1.

• 1b. The input command was invalid (i.e. spelling error, etc.).

  • 1b1. System tells the user the command is unrecognised.

    Use case ends.

Use Case: UC06 - Delete a Vendor

MSS

1. User requests to delete a Vendor entry.

2. System deletes the Vendor entry.

   Use case ends.

Extensions

• 1a. The provided Vendor entry does not exist.

  • 1a1. System shows an error message.

    Use case resumes at step 1.

• 1b. The input command was invalid (i.e. spelling error, etc.).

  • 1b1. System tells the user the command is unrecognised.

    Use case ends.

Use Case: UC07 - Find Guests and Vendor with a particular field

MSS

1. User requests to find Guest and Vendor entries with a specified field (e.g., by name).

2. System displays the matching Guest and Vendor entries.

   Use case ends.

Extensions

• 1a. The input command was invalid (i.e. spelling error, etc.).

  • 1a1. System tells the user the command is unrecognised.

    Use case ends.

• 1b. No matching entries are found.

  • 1b1. System shows a message indicating no results.

    Use case ends.

Use Case: UC08 - Get statistics

MSS

1. User requests to get statistics of all entries.

2. System displays the statistics.

   Use case ends.

Extensions

• 1a. The input command was invalid (i.e. spelling error, etc.).

  • 1a1. System tells the user the command is unrecognised.

    Use case ends.

Use Case: UC09 - Clear all entries

MSS

1. User requests to clear all entries.

2. System clears all entries.

   Use case ends.

Extensions

• 1a. The input command was invalid (i.e. spelling error, etc.).

  • 1a1. System tells the user the command is unrecognised.

    Use case ends.

Non-Functional Requirements

Data Requirements

1. Size: The system should support storage for up to 300 guests and 300 vendors per wedding.
2. Volatility: Guest lists and vendor details may change frequently, especially closer to the event date. Therefore, the system must accommodate dynamic data updates and edits.
3. Persistency: All guest and vendor information must be saved persistently in a JSON file and remain accessible even after system shutdown or failure.

Environment Requirements

1. Operating System: The system must be compatible with Windows, macOS, and Linux operating systems.
2. Dependencies: Java 17 should be the core language.

Accessibility

1. Provide help documentation that can be accessed at any time with a simple command (help).

Fault Tolerance

1. The system should handle errors such as missing commands or invalid input gracefully, providing clear error messages without causing system crashes.
2. Ensure that invalid input (e.g., incorrect email format) does not result in data corruption.

Performance Requirements

1. The system should respond to user input within ten seconds, even for lists of up to 300 guests and 300 vendors.
2. System startup time should not exceed ten seconds on standard hardware.

Glossary

Technical terms

• Java: Java is a programming language that BridalBuddy is written in. It is required to run the application.
• CLI: Command-Line Interface, a text-based interface used to interact with software by typing commands.
• GUI: Graphical User Interface, a user interface that allows users to interact with the app through graphical elements such as buttons, text fields, and menus.
• JAR: Java Archive, A file format used to package Java applications and libraries into a single, compressed file
• JSON: JavaScript Object Notation, a lightweight data-interchange format for structuring and exchanging data

Non-technical terms

• Guest: A person invited to the wedding.
• Vendor: A supplier providing services or goods for a wedding, such as photographers, florists, caterers, etc.
• RSVP Status: The attendance response status of a guest. It can be either accepted, pending, or declined.
• Tag: A keyword or label assigned to an entry to categorize and easily filter it within the list.
• Index: A numerical value representing the position of an entry in a list, used to reference and perform operations on the contact.
• Prefix: Characters preceding details you input on the command line. E.g. n/ for name and e/ for email.

---

Appendix B: Planned Enhancements

In developing BridalBuddy, we've identified areas that can benefit from enhancement. We believe in transparency and keeping our users informed, so we want to acknowledge these feature limitations.

Support for managing multiple weddings

Feature Flaw in Current Implementation

Currently, BridalBuddy is designed to manage only a single wedding at a time. This limits its functionality for users who may be planning multiple weddings simultaneously or managing various events, such as wedding planners working with several clients. Without support for multiple weddings, users may face challenges in organizing and accessing information for each event separately.

Proposed Enhancement

Introduce functionality to manage multiple weddings within the application. This would include separate profiles or dashboards for each wedding, with individual guest and vendor lists. Users could easily switch between weddings, ensuring all information remains organized and accessible. This enhancement would broaden BridalBuddy's usability for professional planners or users involved in multiple wedding events.

Enhance name to accept special characters

Feature Flaw in Current Implementation

Currently, names do not accept . and / and other special characters that might appear in a person's legal name.

Proposed Enhancement

We should remove strict alphanumeric checks for names to support special characters, allowing for more accurate entries.

Improve command parsing to handle common characters in fields

Feature Flaw in Current Implementation

The current design of BridalBuddy's command parser does not accept certain characters, such as /, within input fields (e.g., addresses or company names). When users include these characters as part of standard text entries—such as a/123 Main St/Suite 5—the parser interprets St/ as an unrecognized prefix, resulting in unnecessary parsing errors and frustrating interruptions.

Proposed Enhancement

To address this design limitation, enhance the command parsing logic to allow / within fields without mistaking them for new prefixes. By improving how BridalBuddy distinguishes between field content and actual command prefixes, users will experience fewer parsing errors and a smoother, more accurate input process.

Enhance flexibility in phone number parameter input

Feature Flaw in Current Implementation

Currently, the phone number field only accepts integers as valid input. However, planners might encounter scenarios, such as keeping track of overseas guests, where symbols like (), +, - and . are needed. The current restriction limits users from including such details, potentially causing confusion about the origin of the number.

Proposed Enhancement

We can relax validation on the phone number field to allow symbols such as (), +, - and ..

Enhance find command to allow for partial and substring search

Feature Flaw in Current Implementation

Currently, the find command requires an exact match or a specific keyword for searching guests or vendors. This limits the flexibility of the search functionality, as users cannot retrieve entries that partially match the search term.

Proposed Enhancement

Enhance the find command to allow partial and substring searches. With this enhancement, a search query would return all results containing the specified character(s) or substring, regardless of its position in the name or other fields.

Enhance find command to allow multiple types of prefixes to be used for each find command

Feature Flaw in Current Implementation

Currently, users can only use one type of prefix for each find command. As such, users are unable to use multiple types of prefixes within the same find command. For example, find n/John p/98765432 is an invalid command.

Proposed Enhancement

Enhance find command to allow multiple types of prefixes to be used for each find command so that users can search for multiple fields with a single find command. For example, with this enhancement, find n/John p/98765432 will return all guest(s) and vendor(s) that have the name John and the phone number 98765432

Restrict special characters in the address field

Feature Flaw in Current Implementation

Currently, the address field accepts any character, including symbols like $, % or emojis, which are generally uncommon in typical addresses. This may result in inconsistent data entries and impact the professionalism and readability of the contact list.

Proposed Enhancement

Introduce validation for the address field to allow only common address characters (letters, numbers, spaces, commas, etc.) while restricting uncommon symbols and emojis. This will maintain consistent and realistic address entries.

Expand current stats command to include additional metrics

Feature Flaw in Current Implementation

The existing stats command in BridalBuddy only provides statistics on guest attendance, such as counts of those attending, declining, or yet to respond. While this information is helpful, the feature could be improved by providing additional insights, such as the current budget—a crucial aspect of wedding planning. Without budget metrics, planners may find it challenging to get a comprehensive view of the wedding's overall progress.

Proposed Enhancement

Enhance the stats command to display both attendance and budget metrics, providing a more comprehensive overview.
By combining attendance statistics with budget metrics, the enhanced stats command will give planners a fuller picture of the wedding’s status, making it easier to manage both attendance and finances in one place.

Support for multiple currencies in budget tracking

Feature Flaw in Current Implementation

Currently, BridalBuddy's budget tracking feature only supports the dollar symbol ($), which may not be suitable for users in countries where other currency symbols (such as £, €, ¥, etc.) are standard. This limitation can lead to confusion and reduce usability for international users who need their local currency symbol represented.

Proposed Enhancement

Update the budget tracking feature to allow users to input their preferred currency symbol. This enhancement would enable planners to use a symbol that reflects their local currency, making the budget tracking experience more intuitive and globally accessible. This change would improve clarity and provide a more personalized experience for users in various regions.

Extend clear command to clear Guests and Vendors Separately

Feature Flaw in Current Implementation The existing clear command in BridalBuddy deletes all Guests and Vendors. In some situations, users might want to clear only either the Guest or Vendor list. This command may cause some inconvenience as users would have to manually delete all Guests or all Vendors.

Proposed Enhancement Extend the clear function with two more functions clear_guest and clear_vendor to delete all Guests or all Vendors respectively. This would help to resolve the aforementioned scenario, allowing users more functionality.

---

Appendix C: Instructions for Manual Testing

Given below are instructions to test the app manually.

Launch and shutdown

1. Initial launch

   i. Download the jar file and copy into an empty folder

   ii. Double-click the jar file
   Expected: Shows the GUI with a set of sample contacts. The window size may not be optimum.

2. Saving window preferences

   i. Resize the window to an optimum size. Move the window to a different location. Close the window.

   ii. Re-launch the app by double-clicking the jar file.
   Expected: The most recent window size and location is retained.

Viewing all Guests and Vendors

1. Test case: list
   Expected: All Guests and Vendors are displayed in their respective lists in the display panel. Total number of Guests (pending, coming, not coming) and Vendors are displayed in the outcome box.

Adding a Guest

1. Test case: add_guest n/Nick Fury p/96753452 e/nickfury@avengers.com a/219 West 47th Street, New York City, New York rsvp/P r/H t/boss t/avenger
   Expected: A new guest is added to the end of the Guest list. Details of the Guest are displayed in the outcome box.

2. Test case: add_guest n/Peter Parker p/92458634 e/peter@school.com a/20 Ingram Street, New York City, New York
   Expected: A new guest is added to the end of the Guest list. Details of the Guest are displayed in the outcome box.

3. Test case: add_guest n/Nick Fury p/96753452 e/nickfury@duplicate.com a/Duplicate City
   Expected: No Guest is added. Error details shown in the outcome box. Command line remains the same.

Adding a Vendor

1. Test case: add_vendor n/Henry Pym p/84568869 e/pym@quantum.com a/31 Albert Street, San Francisco c/Pym Technologies b/1000 t/AUX t/visuals
   Expected: A new vendor is added to the end of the Vendor list. Details of the Vendor are displayed in the outcome box.

2. Test case: add_vendor n/Stephen Strange p/86759432 e/stephen@mystic.com a/177A Bleecker Street, Manhattan, New York City c/The Sanctum Sanctorum
   Expected: A new vendor is added to the end of the Vendor list. Details of the Vendor are displayed in the outcome box.

3. Test case: add_vendor n/Henry Pym p/84568869 e/pym@duplicate.com a/Duplicate City c/Duplicate Technologies
   Expected: No Vendor is added. Error details shown in the outcome box. Command line remains the same.

Editing a Guest

1. Test case: edit_guest 1 rsvp/A
   Expected: First Guest's RSVP status is updated in the list. Details of the edited Guest is displayed in the outcome box.

2. Test case: edit_guest 2 p/99313358 a/21 Jump Street, Brooklyn, New York t/shield
   Expected: Second Guest's RSVP status is updated in the list. Details of the edited Guest is displayed in the outcome box.

3. Test case: Try editing a Guest such that it has the same name and phone number as another Guest on the list.
   Expected: No Guest is edited. Error details shown in the outcome box. Command line remains the same.

Editing a Vendor

1. Test case: edit_vendor 1 c/Coca Cola
   Expected: First Vendor's company is updated in the list. Details of the edited Vendor is displayed in the outcome box.

2. Try editing other vendors with different parameters. Multiple parameters can be specified for each command as well, same as the second test case of edit guest.
   Expected: The Vendor at the specified index will be edited with the specified fields. Details of the edited Vendor is displayed in the outcome box.

3. Test case: Try editing a Vendor such that it has the same name and phone number as another Vendor on the list.
   Expected: No Vendor is edited. Error details shown in the outcome box. Command line remains the same.

Deleting a Guest

Prerequisites: List all Guests and Vendors using the list command. Multiple Guests and Vendors in each list.

1. Test case: delete_guest 1
   Expected: First Guest is deleted from the Guest list. Details of the deleted Guest is displayed in the outcome box.

2. Test case: delete_guest 0
   Expected: No Guest is deleted. Error details shown in the outcome box. Command line remains the same.

3. Other incorrect delete commands to try: delete_guest, delete_guest x, ... (where x is larger than the guest list size)
   Expected: Similar to previous.

Deleting a Vendor

Prerequisites: List all Guests and Vendors using the list command. Multiple Guests and Vendors in each list.

1. Test case: delete_vendor 1
   Expected: First Vendor is deleted from the Vendor list. Details of the deleted Vendor shown in the outcome box.

2. Test case: delete_vendor 0
   Expected: No Vendor is deleted. Error details shown in the outcome box. Command line remains the same.

3. Other incorrect delete commands to try: delete_vendor, delete_vendor x, ... (where x is larger than the guest list size)
   Expected: Similar to previous.

Finding Guest(s)/Vendor(s)

1. Test case: find n/Thor
   Expected: All Guests and Vendors with the word Thorin the name are displayed in their respective lists. Total number of Guests (pending, coming, not coming) and Vendors found will be displayed in the outcome box.

2. Test case: find t/agent
   Expected: All Guests and Vendors with the tag agent are displayed in their respective lists. Total number of Guests (pending, coming, not coming) and Vendors found will be displayed in the outcome box.

3. Test case: Try using the find command with more than one field specified.
   Expected: No change in the Guests and Vendors displayed. Error details shown in the outcome box. Command line remains the same.

Viewing Statistics

1. Test case: stats
   Expected: All Guests and Vendors are displayed in their respective lists. Total number of Guests (pending, coming, not coming) and Vendors will be displayed in the outcome box.

Clearing both lists

1. Test case: clear
   Expected: All Guests and Vendors deleted from their respective lists. Both lists have no contacts displayed. Success message is displayed in the outcome box.

Exiting BridalBuddy

1. Test case: exit
   Expected: BridalBuddy closes.

Saving Data

1. Dealing with missing data file
   i. Delete the file named bridalbuddy.json located in the data folder.
   ii. Relaunch BridalBuddy
   iii. Run the command clear
   Expected: A new empty bridalbuddy.json file is created in the data folder. Sample Guests and Vendors are deleted.

2. Dealing with corrupted data file
   i. Open the bridalbuddy.json file located in the data folder with a text editor.
   ii. Corrupt the file by deleting a few characters. Save the file.
   iii. Relaunch BridalBuddy.
   Expected: No Guests and Vendors will be displayed in the display panel of BridalBuddy.

---

Appendix D: Efforts

Adapting AB3 for Multiple Entity Types

Difficulty Level: Very high

Challenges Faced: AB3 was designed to manage a single entity type—contacts. Our project, however, required managing two distinct entities, guests and vendors, each with unique fields and functionalities (e.g., RSVP status for guests, company name for vendors).

Effort Required: Modifying the data model to accommodate multiple entities required extensive refactoring of the underlying structure. This included updates to storage, command parsing, and validation logic, to support both entity types consistently while maintaining functionality for existing commands. We also spent significant time adjusting current commands to recognize and process both guests and vendors without errors.

Achievements: We successfully integrated both entity types while maintaining a clean architecture, enabling BridalBuddy to manage multiple types of contacts with specific fields and functionalities, all without compromising compatibility with existing commands.

Introducing New Optional and Custom Fields

Difficulty Level: Medium

Challenges Faced: We added new optional fields, such as budget for vendors, and relationship type for guests. This required additional validations and command adjustments to handle partial data inputs, ensuring user flexibility.

Effort Required: Implementing and validating optional fields involved command parsing, updates to storage, and ensuring proper input validation (e.g. budgets specified to two decimal places).

Achievements: The added flexibility in fields has made BridalBuddy adaptable to a wider variety of planning needs, while the validation ensures high data reliability.

UI Customization

Difficulty Level: High

Challenges Faced: Customising the UI to clearly distinguish between guests and vendors required significant modifications to AB3's existing UI structure, which proved more complex than backend coding. Editing the UI relied heavily on visual adjustments, involving considerable trial and error to achieve the right layout and style.

Effort Required: We restructured the layout to visually separate guest and vendor lists, allowing users to easily differentiate and manage each contact type.

Achievements: The customized UI offers a more intuitive experience, allowing users to quickly access and manage information specific to guests and vendors.

Statistics Display

Difficulty Level: Medium

Challenges Faced: Implementing the statistics command required adapting AB3’s structure to dynamically calculate and display counts of guests and vendors.

Effort Required: We developed a new stats command that calculates and returns the total counts of guests and vendors.

Achievements: The stats command offers users a quick overview of the total number of guests and vendors, providing planners with valuable insights at a glance.
